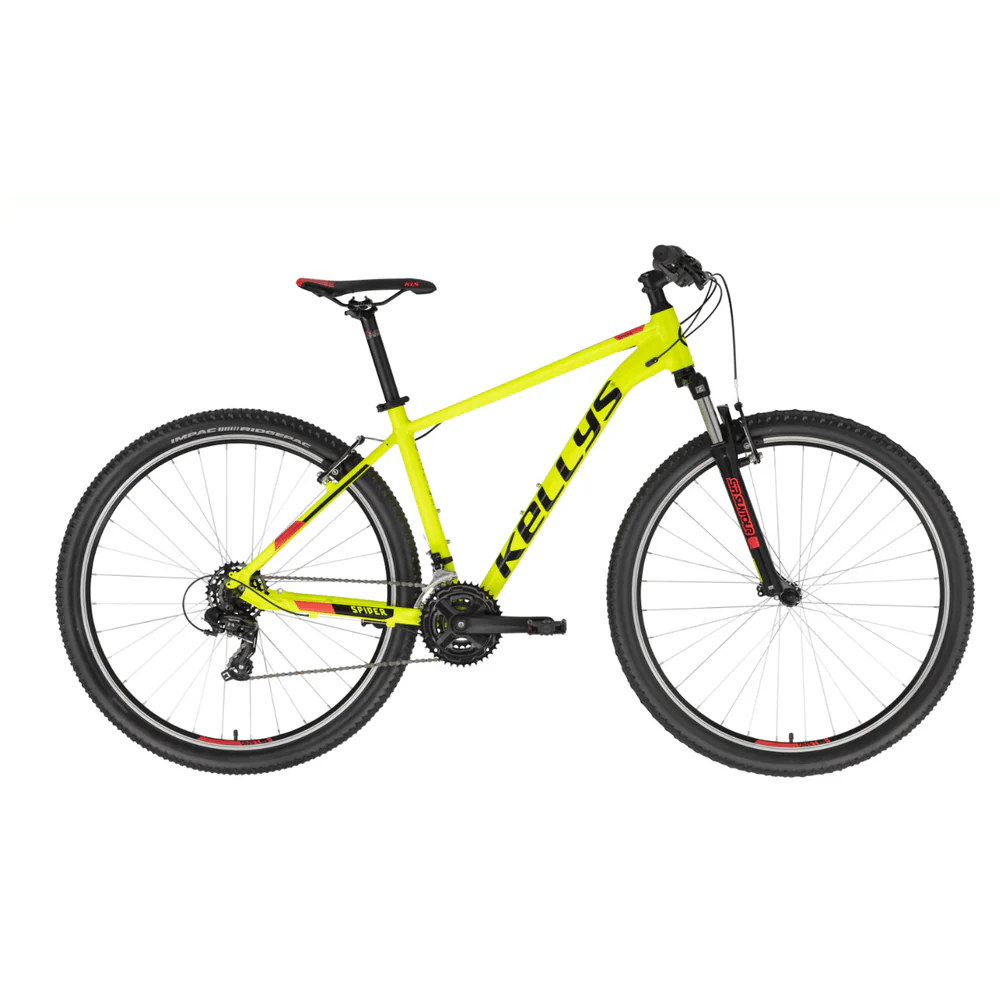

The Spider 10 is a 21-speed Cross-Country Mountain Bike for those wanting never-ending adventure in mountain biking.

FRAME:

Lightweight Alutec aluminium alloy frame with Race Ready Concept geometry for best all-round mountain abilities with high pedalling efficiency and neutral handling both on uphill and downhill sections.

DRIVETRAIN:

Reliable and precise Shimano drivetrain with Altus rear derailleur and the MTB-optimised gear range promises the best gearing for every off-road condition.

BRAKES:

Convenient and efficient C-Star CX7 disc brakes allow the rider to enjoy the benefits of one of the best brake types in mountain biking.

FORK:

Thanks to Speed Lockout and 100 mm stroke the SR Suntour XCT suspended fork promises great uphill efficiency and comfort in every terrain.

SPECIFICATIONS

• FRAME
  KELLYS Alutec RRC 29 - Race Ready Concept
• FRAME SIZE
  M / L
• FORK
  SR SUNTOUR XCE28 (29), 80mm, coil spring
• HEAD PARTS
  semi-integrated
• B.B.PARTS
  cartridge (122mm)
• CRANKSET
  PROWHEEL (42x34x24T) - length 170mm
• SHIFTERS
  SHIMANO ST-EF41-7 EZ-fire Plus
• F/DERAILLEUR
  SHIMANO TY300 (34.9mm)
• R/DERAILLEUR
  SHIMANO TY300 (direct mount)
• SPEED
  21
• CASSETTE SPROCKET
  SHIMANO CS-HG200-7 (12-32T)
• CHAIN
  KMC Z7 (110 links)
• BRAKES
  APSE V-brake
• BRAKE LEVERS
  SHIMANO ST-EF41 EZ-fire Plus
• HUBS
  alloy / SHIMANO TY500-7 (32 holes)
• RIMS
  KLS Draft 622x21 (32 holes)
• SPOKES
  steel
• TIRES
  IMPAC Ridgepac 54-622 (29x2.10)
• STEM
  KLS Active - diam 28.6mm / bar bore 31.8mm / 8° / length 75mm (M), 90mm (L)
• HANDLEBAR
  KLS Active RiseBar - diam 31.8mm / rise 18mm / width 680mm
• GRIPS
  KLS Advancer
• SEAT POST
  KLS Active - diam 30.9mm / length 300mm (M), 350mm (L)
• SADDLE
  KLS Sentinel 2
• PEDALS
  plastic
